2017 - 2020 | Ford F-150 / F-250, F-350 & F-450

Ford F-150 2015-Current K9 Insert
Ford F-250, 350, 450 2017 - Current K9 Insert

Kit Includes:

• Insert container with sliding door
• 2 door panels
• 2 side window guards
• 1 rear window guard
• 1 rubber mat
• dome light

Product Details:

• K9 transportation system

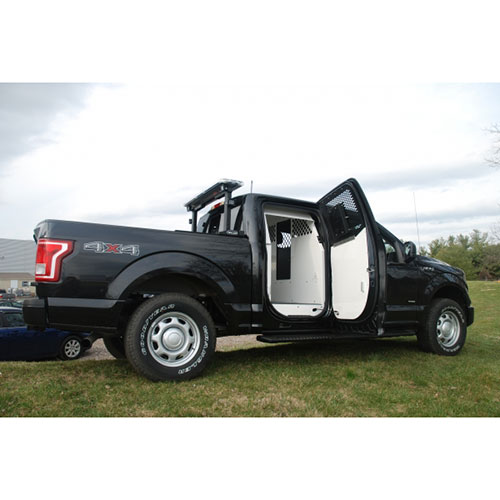

  For 2017-2021 F-250, 350, 450 crew cab pickup, F-450 and 550 crew cab /cab chassis, 2015-2021 Ford F-150 and F-150 special service vehicle (SSV) crew cab pickup
• Kit housing with one front sliding door, aluminum door panels and fold-down interior window guards
• Fabricated from heavy-duty aluminum for long-lasting durability
• Super durable white powder coat finish on main components
• Black medium texture semi gloss powder coat finish on center sliding door and window guards
• Easy to install and clean
• Designed to maximize driver seat travel without compromising K9 entry
• Mounts to OEM mounting points. (no drilling required)
• Window guards include bolt on flat panels that can be removed for optional 10" emergency exhaust fan mounting
• Optional 10" fan and mount kit can mount on driver or passenger side
• Includes adaptors and hose to connect from OEM ductwork under seats. hose connects to vents on K9 compartment front wall
• Upper guard on rear wall folds down to allow easy access and cleaning
• Lower rear wall includes locking fold down door to access vehicle jack, OEM optional inverter and access for cleaning
• Includes relocation brackets for jack and OEM optional inverter
• K9 kit window guards include a .281" x 1.75" slotted hole pattern to minimize the possibility of fingers accidently being put into the K9 compartment
• Optional 10" fan and mount kit for window guard mounting (fan option sold separately)

Specifications:

• 12" fan not recommended
• Purchasing OEM optional running boards is recommended to aid in K9 entry
• Kit inside dimensions: 28" deep by 65" wide by 43.5" high
• Side entry openings: 25.5" wide x 37" high
• Front wall sliding door opening: 14" wide x 30" high
• K9 compartment floor to ground: 29.375"
• Storage space between rear K9 wall and cab wall = 6 inches long x width of cab
• Hot-N-Pop system not available for retail truck with rotary shifter on OEM console
• Only the heat alarm system  is available for retail truck with rotary shifter
• Gross Weight: 235.00 lbs

NOTE:

All inserts are made to order and will ship via truck freight in 8 to 10 weeks.

When ordering, please indicate the Year and Model of the vehicle in the above provided space, thanks.
