K9 Helm CS1-A2 GoggleHelm

CS1-A2 GoggleHelm
The original and only tactical dog helmet built in the USA.

K9 Helm's CS program is the result of a contract completed for the US Army in 2022. The client's expert K9 handlers at Ft. Bragg, NC requested the development of a lightweight cranial shell with a single wrap-around eye shield, outstanding ventilation, strong mounting points for a detachable muzzle, and a Biothane collar with a conventional buckle for the most secure possible retention. The final prototype helm/muzzle kits delivered to Ft. Bragg provided the basis for a regular production model introduced in 2023 — the K9 Helm Cranial System-One, or CS-1, a nod to our patent US10045513, named Cranial Protection System for a Terrestrial Animal.

New for 2025, the CS1-A2 is made of injection molded polycarbonate, and meets or exceeds US military specifications for ballistic safety eye wear.

Compliance to:
MIL-PRF-31013 and MIL-V-43511C
Test Projectile: Chisel point, 0.15 Caliber @ 750+ fps

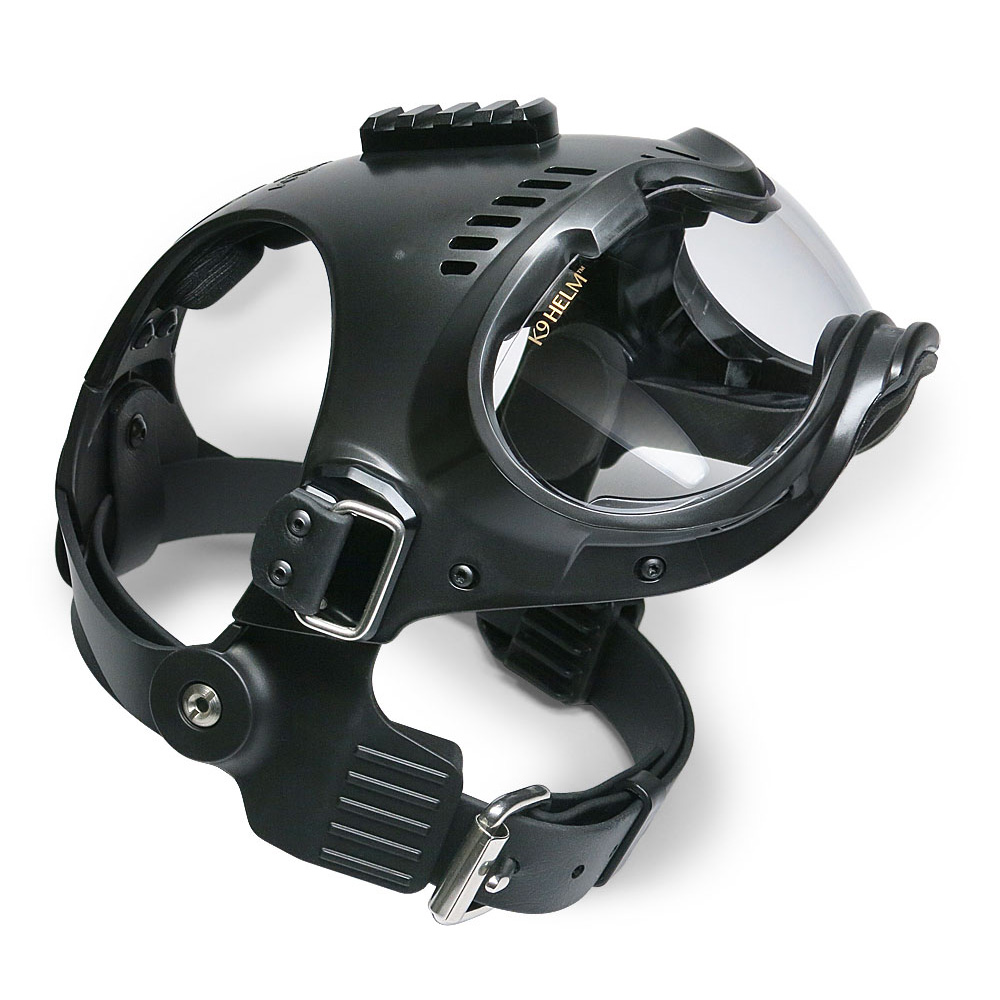

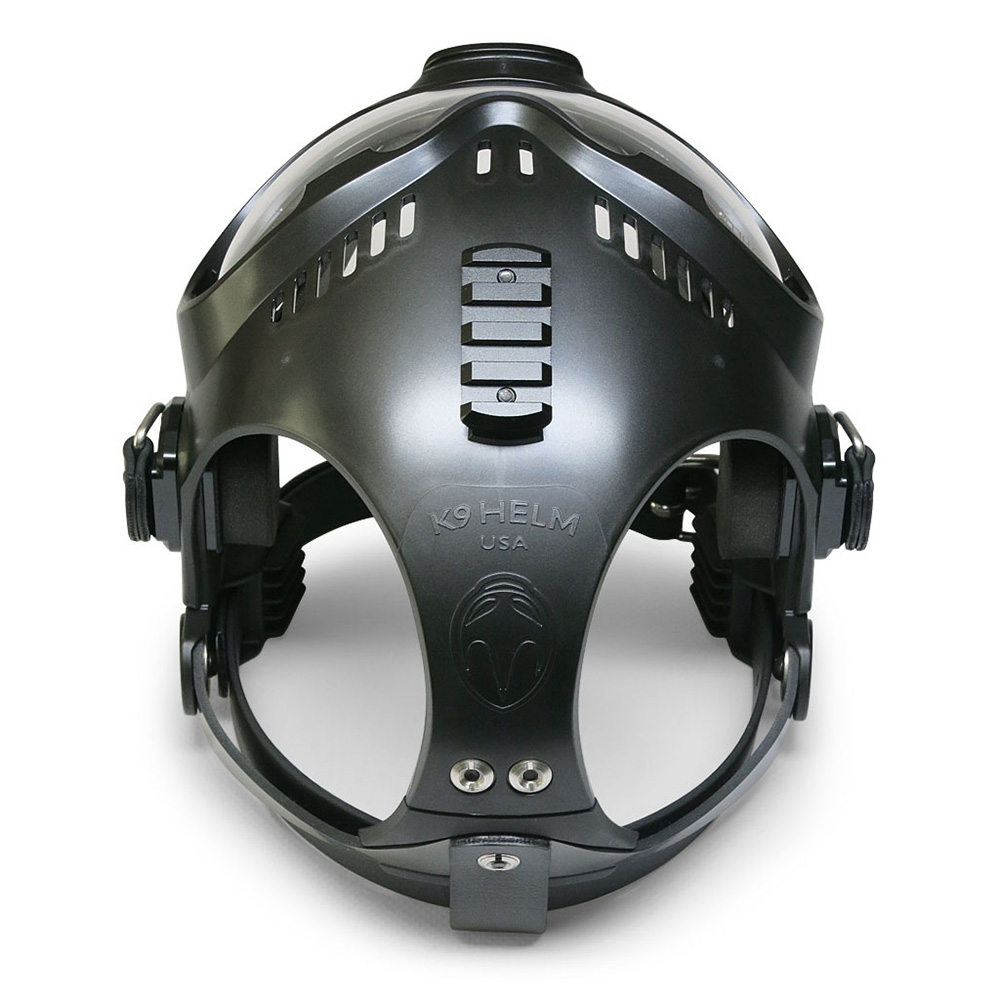

Like the original CS-1, the A2 is ideal for military and police canines. Features include the same wrap-around lens, 6061 aluminum muzzle mounting plates, low-profile top rail, and an internally routed collar.

Optional Items:

• EC1 Removeable Ear Covers
• Clear Wraparound Lens with Drawstring Fabric Bag
• Replacement/ spare helmet shell (fits CS1 and CS1-A2 GoggleHelms)

Fits average size Belgian Malinois, Dutch and German Shepherd dogs between 60 to 80.
NOT FOR OTHER TYPES OF DOGS!

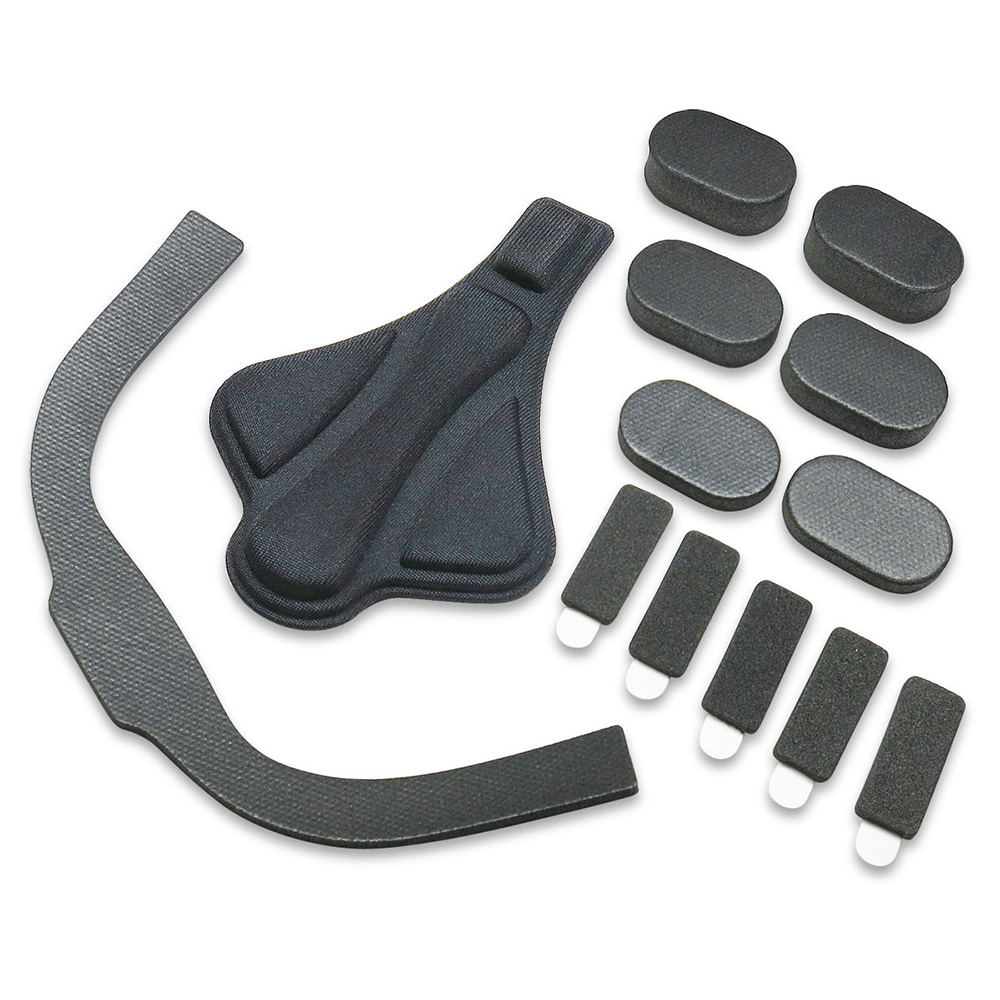

EVA foam padding has Velcro compatible fabric backing, and attaches to hook panels on the interior surfaces of the CS1-A2.

Every CS1-A2 is assembled with a molded top-of-head pad, as well as a wrap-around pad inside the goggle frame. Included are 3 sets of side spacer pads for wide, medium, and narrow heads. Also included is a set of 5 peel-and-stick spacers that can be adhered to the goggle pad, to provide extra cushioning on the sides or under the nose bridge. EVA is a closed cell foam that will not absorb water. Top-of-head pad features an antimicrobial fabric covering for durability.

Fits 38-47cm (15-18.5 inch) necks best
