2018 - 2024 | Ford Expedition K-9 Transport

Ford Expedition 2018 - current K-9 Insert

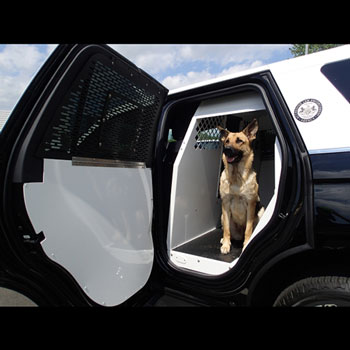

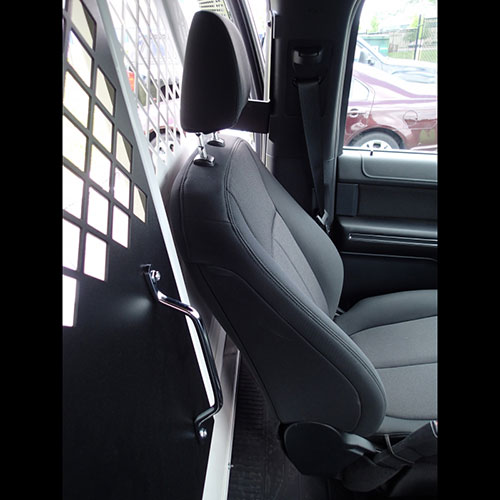

Easy to install and ride rattle free. Includes a durable, lightweight rubber mat and interior dome light. Designed to fit directly behind the driver and passenger seats (rear passenger seats removed). Easy fold-down rear guard to allow cleaning of rear window deck.

Kit Includes:

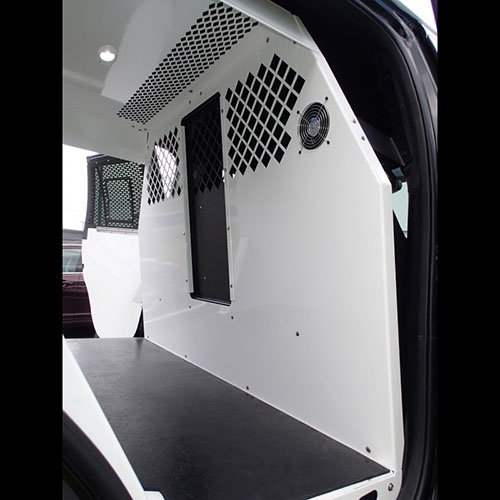

• Insert container with sliding door
• 2 door panels
• 2 side window guards
• 1 rear window guard
• 1 rubber mat
• dome light

Features and Benefits:

• K9 transport system
• For 2018-2019 Ford Expedition SSV and retail (standard length / 122.5 wheel base) kit housing with one front sliding door, aluminum door panels and fold-down interior window guards
• Fabricated from heavy-duty aluminum for long-lasting durability
  Super durable white powder coat finish on main components black medium texture semi gloss powder coat finish on center sliding door and window guards

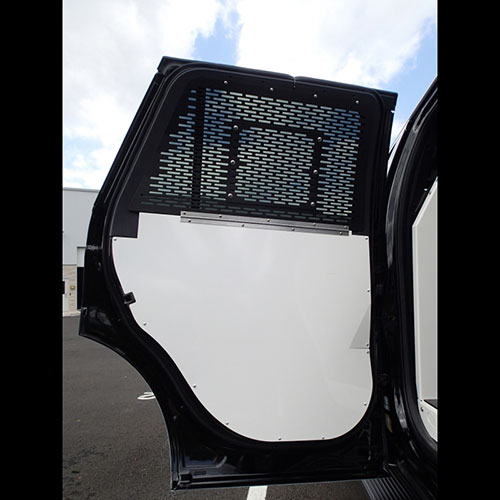

• Window guards with .281" x 1.75" slotted hole pattern to minimize the possibility of fingers accidently being put into the K9 compartment

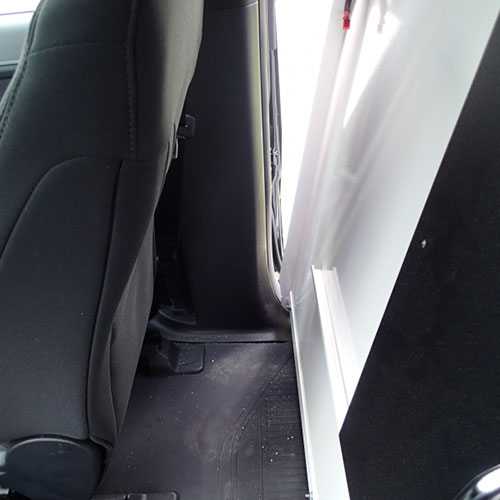

• Designed to maximize driver seat travel without compromising K9 entry
• Mounts to OEM mounting points. (no drilling required)
• Easy to install and clean

includes:

• Interior LED dome light
• Durable and .250" thick masticated rubber mat
• Window guards with bolt-on flat panels that can be removed for optional 10" emergency exhaust fan mounting

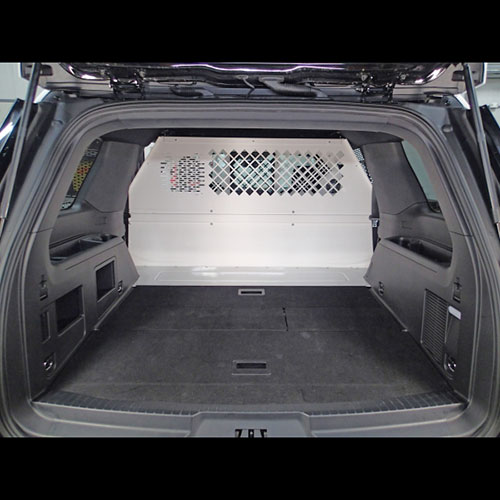

• Rear hinged non-locking floor cover for use with OEM rear cargo floor compartments
  Cover creates additional 48"wide x 12" high x 13" long enclosed storage compartment

optional compatible solutions:

• Air circulation fan option (VAH500)
• Water bowl (VAH503)

Specifications:

• K9 compartment floor to ground: 27"

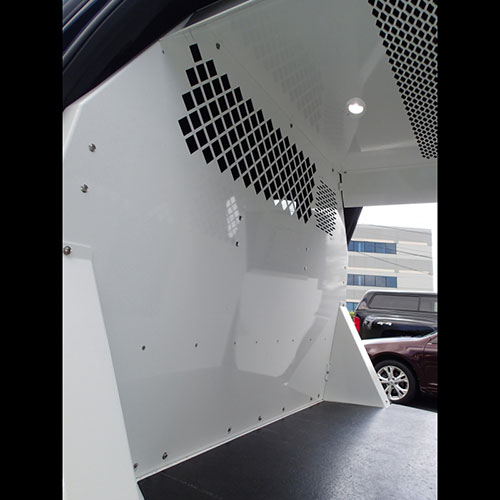

• Inside dimensions: 63.5" wide x 43" high x 30" long at floor / angles up to 24" long at ceiling

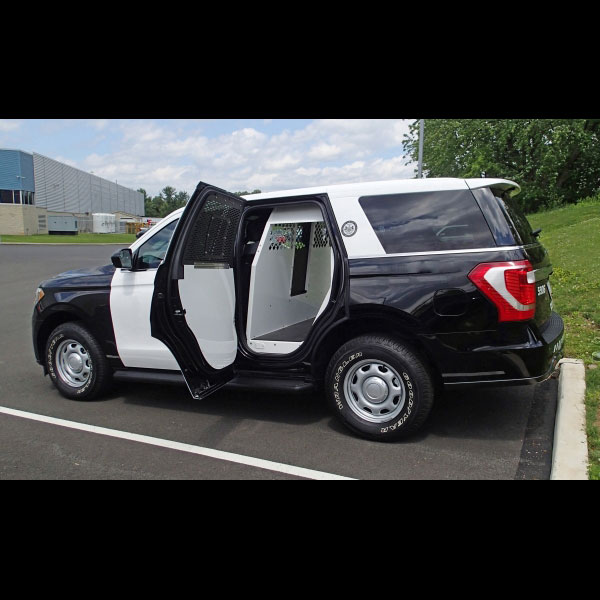

• Side entry openings: 25.5" wide x 37" high

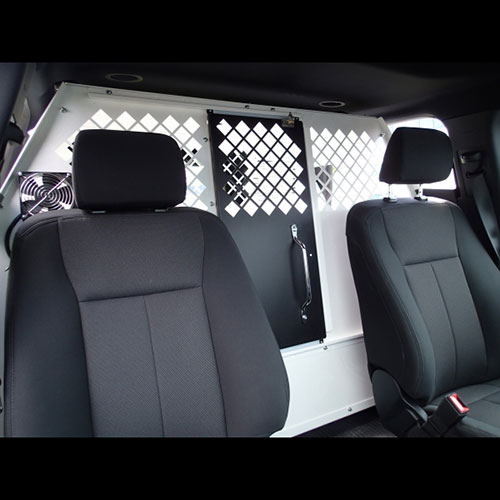

• Front wall sliding door opening: 14" wide x 30" high
• Cargo storage space between rear K9 wall and OEM rear floor trim: 48"
• Does not work in Expedition max (131.5" wheel base) OEM optional running boards are recommended to aid in K9 entry

*** Item is made to order *** Item ships truck freight in 4 to 5 weeks

NOTE:

All inserts are made to order and will ship via truck freight in 8 to 10 weeks.

When ordering, please indicate the Year and Model of the vehicle in the above provided space, thanks.

SUV kit dimensions: 48" deep by 47" wide by 34" high.
